Termination Enclosures

We manufacture a range of free-standing, low-profile and upright termination enclosures with ratings from 600V-38kV and up to 6000 Amp.

  1. Products »
  2. Pad-mount Switchgear »
  3. Termination Enclosures »

Overview

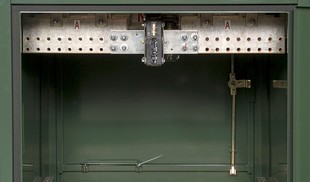

Our termination enclosures are available with copper bus or aluminum bus with built-in lug connectors, and may be a metered or non-metered design. SPS termination enclosures are ideal for splitting single transformer services to feed multiple loads, or in instances where a transformer does not provide adequate space for cable terminations.

Standard features

  • Cross-kinked roof provides strength and prevents standing moisture
  • Welded 12 gauge galvanneal enclosure
  • Silver-plated copper bus or aluminum lay-in connectors
  • Bitmustic “no-drip” compound applied to underside the roof
  • Tab and slot design GPO-3 inadvertent contact barriers
  • Paint finish system third-party certified to meet ANSI C57.12.28
  • Padlockable door handle with silicone bronze penta head security bolt
  • Door stay rods to hold the door in the open position
  • Stainless steel exterior hardware

Optional features

  • Base spacer for increased cable termination area
  • Ground sleeve
  • Stainless steel or aluminum enclosure
  • Paint finish system for coastal environments third-party certified to meet ANSI C57.12.29
  • Custom paint colors
  • Current transformers for metering
  • Tab and slot design clear poly-carbonate inadvertent contact barriers
