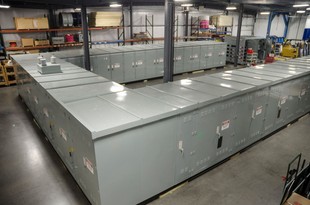

Metal-Enclosed Switchgear

When circuit breakers are not needed or desired, our cost-effective, ANSI class metal-enclosed switchgear with load interrupter is a viable option for your power distribution system design.

Speed and Custom

This 5kV, special height (78″) switchgear required a unique arrangement of terminating in and out of the top of the switchgear.

The additional requirements of fitting an existing space and expedited shipping from date of order did not pose a problem.

Load break switch and circuit breaker designs (pictured) are readily available.

Utility approved, customer purchased

This 26.4kV metal-enclosed switchgear included a non-fused main, utility metering, and four feeder cubicles.

By utilizing a 29kV rated switch, 35kV class switchgear was not required.

Utility acceptance was needed prior to bidding this project, and SPS specializes in meeting critical utility company requirements, including metering, grounding and ratings.

Flexible options

Readily available options from SPS include:

  • Mild steel, stainless steel or aluminum construction
  • Motor operators
  • Relays and control devices
  • Third party certification
  • Special sizes
  • NEMA 1, 4, 3R non-walk-in, 3R walk-in, and PDC construction
  • Seismic ratings
  • Skid mounted
  • Special colors.
